Dynamic Shaker Vibration Test System for ASTM D4728 Shipping Containers Essential for Product Assurance and New Product Research and Development

Dynamic Shaker Vibration Test System for ASTM D4728 Shipping Containers Essential for Product Assurance and New Product Research and Development
Dynamic Shaker Vibration Test System for ASTM D4728 Shipping Containers Essential for Product Assurance and New Product Research and Development
Dynamic Shaker Vibration Test System for ASTM D4728 Shipping Containers Essential for Product Assurance and New Product Research and Development Dynamic Shaker Vibration Test System for ASTM D4728 Shipping Containers Essential for Product Assurance and New Product Research and Development Dynamic Shaker Vibration Test System for ASTM D4728 Shipping Containers Essential for Product Assurance and New Product Research and Development Dynamic Shaker Vibration Test System for ASTM D4728 Shipping Containers Essential for Product Assurance and New Product Research and Development

Büyük resim :  Dynamic Shaker Vibration Test System for ASTM D4728 Shipping Containers Essential for Product Assurance and New Product Research and Development

Ürün ayrıntıları:
Menşe yeri: DONGGUANG, ÇİN
Marka adı: LABTONE
Sertifika: CE / ISO
Model numarası: EV320
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 takım
Fiyat: pazarlık edilebilir
Ambalaj bilgileri: Vakum Paketlemeli Kontrplak Kasa
Teslim süresi: 45 iş günü
Ödeme koşulları: T/T, L/C
Yetenek temini: 15 Takım / Ay
İletişim

Dynamic Shaker Vibration Test System for ASTM D4728 Shipping Containers Essential for Product Assurance and New Product Research and Development

Açıklama
Maks. Güç: 20kN (2000kg) Yazılım: sinüs, rastgele, şok
Yerinden etme: 76,2 mm Bilgisayar: Acer iş bilgisayarı
Kafa Genişletici: Alüminyum alaşımı Kayma Tablosu: Alüminyum alaşımı
Vurgulamak:

Dynamic Shaker vibration test system

,

ASTM D4728 shipping container tester

,

vibration test system for R&D



Dynamic Shaker Random Vibration Testing of Shipping Containers ASTM D4728

ASTM_4728.pdf





Introduction:


Vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.



A complete set of vibration testing system is composed of shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection.





Technical Specifications:


Model EV320 EV220
Vibration Generator VG2200/76 VG2200/50
Frequency(Hz) 1-3000 1-3000
Max Exiting Force(kg.f) 2000 2000
Max. Displacement (mmp-p) 76.2 50.8
Max. Acceleration(g) 80 80
Max. Velocity(cm/s) 200 200
Payload(kg) 300 300
Armature Mass(kg) 25 22
Armature Diameter(mm) φ320 φ320
Cooling Method Forced Air Cooling
Utility
Requirements		 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 40 40




Meet International Standards:

MIL-STD-810G, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.



Main Applications:
  • Automotive parts and systems - qualification testing
  • Electronic assembly, computer equipment testing
  • Avionics and military hardware testing
  • Satellite component testing
  • Product and package testing
  • General stress screening

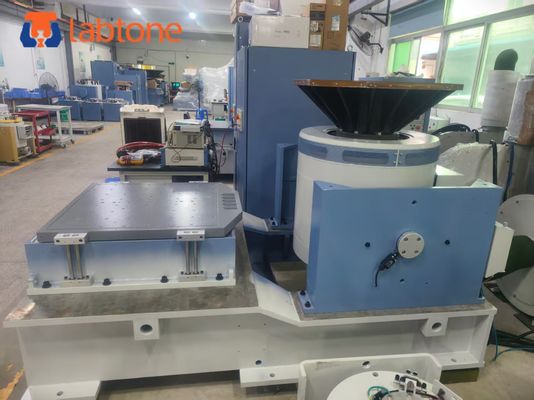

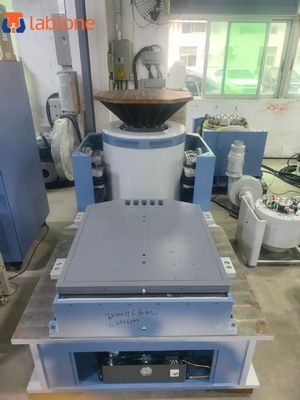

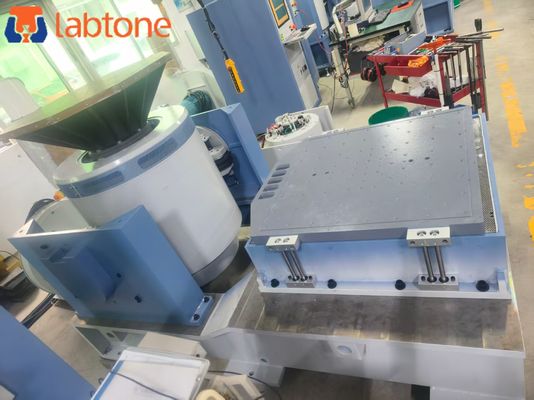

Horizontal oil film slip table


The horizontal slip table is designed to have high tilting moment and lateral restriction. This design concept is combined with standard horizontal slip table to enable high dynamic moment limit and keep guide oil film damping feature. The horizontal slip table is composed of a slipper, a connector, a natural granite slab, horizontal slip table base and an independent oil source.

Dynamic Shaker Vibration Test System for ASTM D4728 Shipping Containers Essential for Product Assurance and New Product Research and Development 0


Customer Services


Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.


In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).


After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.



Customer visiting


Dynamic Shaker Vibration Test System for ASTM D4728 Shipping Containers Essential for Product Assurance and New Product Research and Development 1
