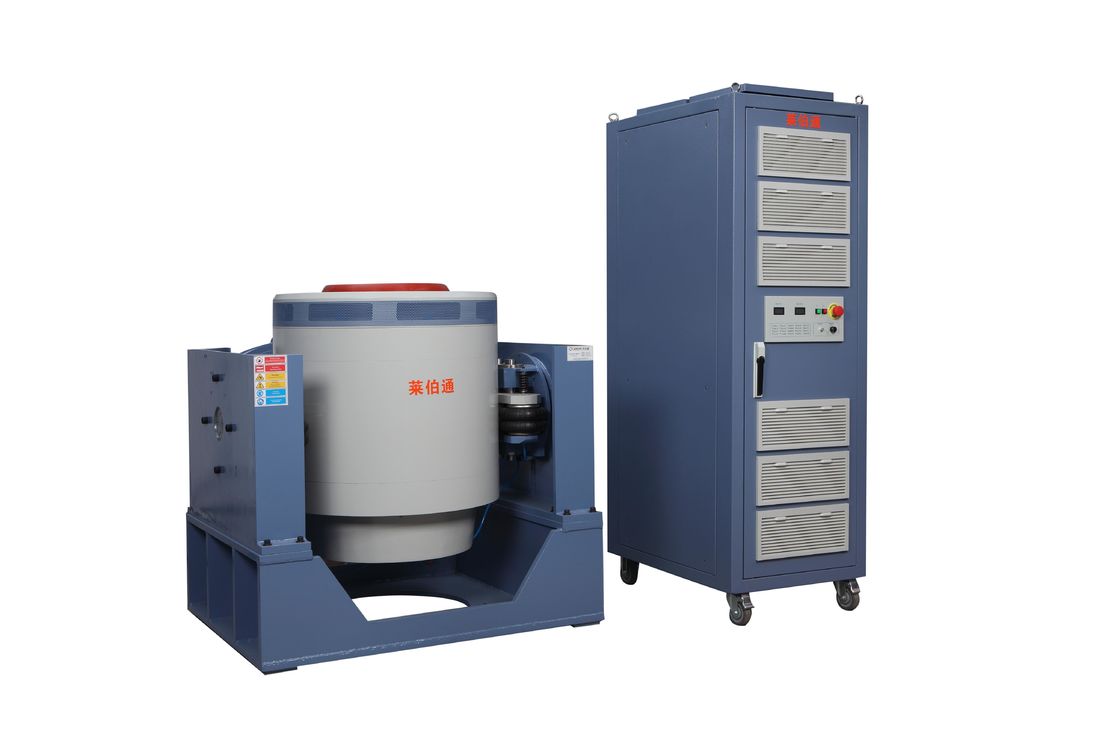

New Energy Battery Vibration Test System With Large Vertical Table And Slip Table

New Energy Battery Vibration Test System With Large Vertical Table And Slip Table
New Energy Battery Vibration Test System With Large Vertical Table And Slip Table New Energy Battery Vibration Test System With Large Vertical Table And Slip Table New Energy Battery Vibration Test System With Large Vertical Table And Slip Table

Büyük resim :  New Energy Battery Vibration Test System With Large Vertical Table And Slip Table

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: LABTONE
Sertifika: CE,ISO
Model numarası: EV440
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1set
Ambalaj bilgileri: Uluslararası ahşap kasa
Teslim süresi: 45 iş günü
İletişim

New Energy Battery Vibration Test System With Large Vertical Table And Slip Table

Açıklama
İsim: Büyük Dikey Tablalı ve Kayma Tablalı Yeni Enerji Akü Titreşim Test Sistemi sinüs kuvveti: 4000kg.f(40kN)
Şok Gücü: 8000kg.f(80kN) Yerinden etme: 100 mm
Maks.Hız: 2.0m/s Yük: 1000kg
Soğutma yöntemi: Hava soğutma
Vurgulamak:

vibration test system with vertical table

,

energy battery vibration test equipment

,

large slip table vibration tester

New Energy Battery Vibration Test System With Large Vertical Table And Slip Table



Vibration testing is crucial for ensuring the reliability and safety of new energy batteries. As batteries are increasingly being used in various applications, including electric vehicles and renewable energy storage systems, it is essential to evaluate their performance under dynamic conditions.

Our solution encompasses advanced vibration test equipment and specialized test protocols. Our highly precise vibration test systems can simulate real-world conditions, ensuring a thorough evaluation of battery performance and durability. Additionally, our experienced technicians and engineers provide technical support and customization services to meet specific testing needs.



With our comprehensive vibration testing solution, you can assess the structural integrity, performance, and reliability of new energy batteries accurately. Along with ensuring compliance with industry standards, our solution aids in identifying potential design flaws and optimizing battery performance.



Equipment Configuration



Item Configuration Qty.
1 Vibration shaker COMBO
  A30F44 Shaker (included Pneumatic Centering Controller) 1 set
  B153 blower (included silencer and 4.5M Duct ) 1 set
  Head Expander VT150CM 1 set
  Horizontal Slip Table HG150M (included Shaker Rotation system) 1 set
2 Power Amplifier
  LA40K power amplifier(included Field power supply) 1 set
3 Vibration Controller VCS-4


Model : VCS-04, Hardware : 4 PE/ICP input channels

Software application :Sine,Random,Shock

 1 set
  Accelerometer LTE-C04A07 (with low noise cable) 2 pcs
  PC system 0 set
4

Documentation

Operation Manual, Test Report, Packing List

 1 set
5 Accessories
  Maintenance Tools 1 set
  Standard Spare Parts 1 set





Vibration Test System Specification





Shaker Specifications A30F44
Peak Sine (Pk) 4000Kg.f peak (40KN)
Random (RMS) 4000Kg.f r.ms (40KN) @ISO5344
Shock (Pk) 8000Kg.f peak (80KN) @6ms
Usable Frequency 1～3000Hz
Maximum Displacement (p-p) 100mm (4inch)
Max. velocity 2m/s
Max. acceleration 100g (980 m/s2)
Vertical Load Support 500 kg

Body Suspension Natural

Frequency (Thrust Axis)

 Less than 2.5 Hz
Armature Diameter Ф442 mm
Armature Weight 35kg

Fundamental Resonance

Frequency (Bare table)

 2,500 Hz (nom.) +/- 5%

Load Attachment

Points (Standard)

 16 stainless steel M10 Inserts
Stray Flux Density ＜10gauss
Allowable partial force 500.N.M
Shaker dimensions 1290mmL×1010mmD×1145mmH
Weight of Shaker About 3000Kg
Power Amplifier Specifications LA40K
Rated Output Capacity 40KVA(120Vrms/380Arms)
Signal to Noise Ratio Greater than 65 dB
Amplifier Efficiency Greater than 90%
Amplifier Overall Dimensions 600mmL×900mmD×1980mmH
Weight of Amplifier About 530Kg

Vibration Test System  Features


1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.
3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic     distortion.
4) Quick self-diagnosis with safety interlock, high safety reliability
5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance
6) Horizontal and vertical expansion platforms for different applications
7) Simple controller operation


Customer Services

Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.


In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).


After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.

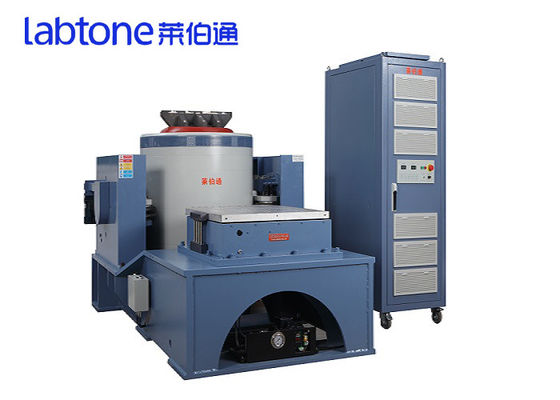

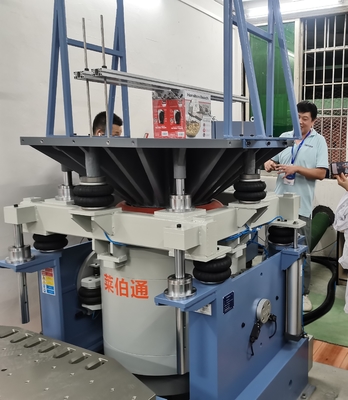

Vibration Test System Images:

New Energy Battery Vibration Test System With Large Vertical Table And Slip Table 0New Energy Battery Vibration Test System With Large Vertical Table And Slip Table 1
