ISTA and ASTM D 5276 Compliant Lab Drop Tester for Large and Heavy Packages with Precision Ball Screw Height Adjustment

Free Fall Drop Tester For Big And Heavy Packages Meet ISTA And ASTM D 5276

Drop Tester Main Parameters

Drop height range: 0 to 1200 mm
Max. load: 700 kg (customized)
Height display: LCD
Machine type: E-shaped Fork
Control means: PLC and touch panel
Setting method: touch panel
Drop mode: free drop
Height adjustment means: motor and precision ball screw
Volume of test specimen: 2350 x 1580 x 400 mm (customized)
Cushioning mechanism: Hydraulic Cushion + High Pressure Brake Device
Machine dimension (mm): 2550 (L) × 2313 (W) × 2880 (H)
Base dimension (mm): 2550 (L) × 1700 (W) × 235 (H)
Power supply: three phase 380V/50HZ
Air pressure requirement: 0.5 - 0.7 MPa
Equipment weight: about 2500kg​

Product Function

Drop tester for heavy packaged freight are mainly used for assessing the ability of large package products to bear drop in the process of handling, transport and loading and unloading, including design of a cushioning package, selection of packaging materials, fragility of package, goods in standard testing package (surface, angle and edge), etc. They are used for assessing the protection capability of packages for goods, thus providing a basis for package design, selection of cushioning materials for package, and improving the package design.

Specification

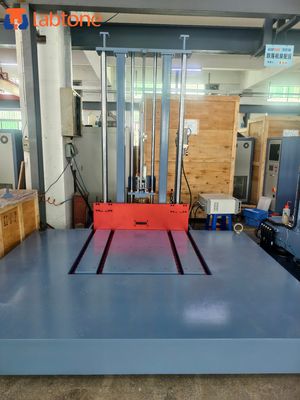

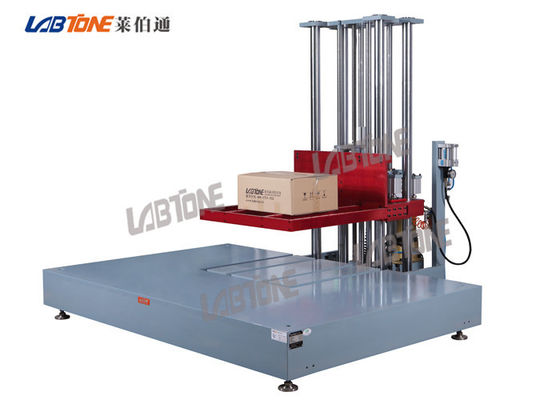

Detailed Picturers:
