ISTA 6-Amazon Electrodynamic Vibration Shaker System AC 3-Phase 380V / 50Hz
Test requirements and model selection guide
To choose a suitable vibration test system, the most important thing is to know the exciting force required to perform the vibration test. To evaluate and calculate the exciting force, the following test specifications should be known:
Clear Testing Requirements:
- Frequency (Frequency Range)
- Maximum Acceleration
- Maximum Displacement
- Maximum Velocity
- Specimen Mass and Fixation
The specimen fixation is selected based on the upper limit of test frequency and specimen size, either vertical expansion platform or horizontal slip table. Specimen mass is needed to evaluate the required exciting force for vibration test.
Standards:
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Application:
Automotive, Electronics, Aviation, Vessel, Telecommunication, Military Industry, Measuring Instrument etc.
Features:

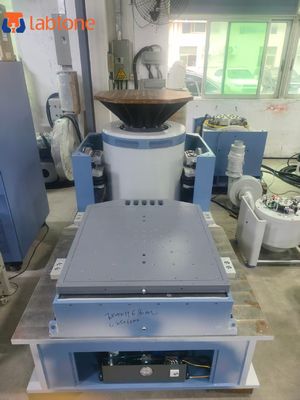

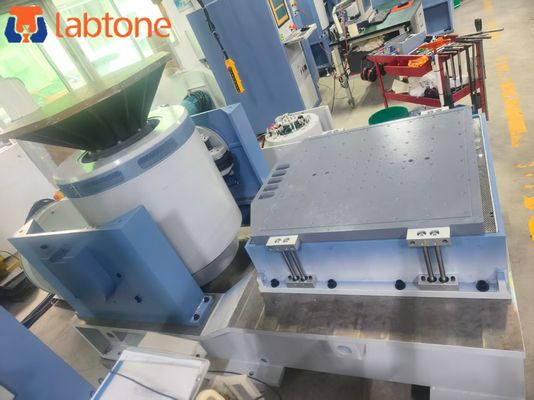

- Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
- Perfect performance on amplitude variation.
- High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
- Rapid self-test diagnostics and chain safeguard, high high safety and reliability
- Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
- Different application on the vertical and horizontal tables.
- Simple operation for the controller.
Working Principle:
Specifications: EV232-EV260
| System Model |
EV232 |
EV240 |
EV250 |
EV260 |
| Vibration Generator |
VG3200/50 |
VG4000/50 |
VG5000/50 |
VG6000/50 |
| Frequency Range(Hz) |
2-2500 |
2-2500 |
2-2500 |
2-2500 |
| Max.Force(kg.f) |
3200/32KN |
4000/40KN |
5000/50KN |
6000/60KN |
| Max. Displacement(mmp-p) |
50 |
50 |
50 |
50 |
| Max. Acceleration(g) |
100 |
100 |
100 |
100 |
| Max.Velocity(cm/s) |
200 |
200 |
200 |
200 |
| Payload(kg) |
500 |
800 |
1000 |
1000 |
| Armature Mass(kg) |
32 |
35 |
50 |
50 |
| Armature Dia.(mm) |
ф400 |
ф400 |
ф450 |
ф450 |
| Cooling Method |
Air Cooling |
| Vibration Generator Weight(kg) |
2000 |
2500 |
3500 |
3800 |
Vibration Generator Dimention
(L×W×H)(mm) |
1400×900×1100 |
1400×980×1100 |
1600×1120×1340 |
1600×1120×1340 |
| Power Amplifier |
Amp35k |
Amp50k |
Amp60k |
Amp70k |
| Cooling Method |
Air Cooling |
| Power Amplifier Weight(kg) |
550 |
600 |
800 |
1000 |
Power Amplifier Size
(L×W×H)mm |
800×550×1920 |
800×550×1920 |
800×550×1920 |
800×550×1920 |
| Voltage requirements |
3-phase AC380V±10% 50Hz |
| Aggregate Capacity(KW) |
45 |
64 |
85 |
95 |
