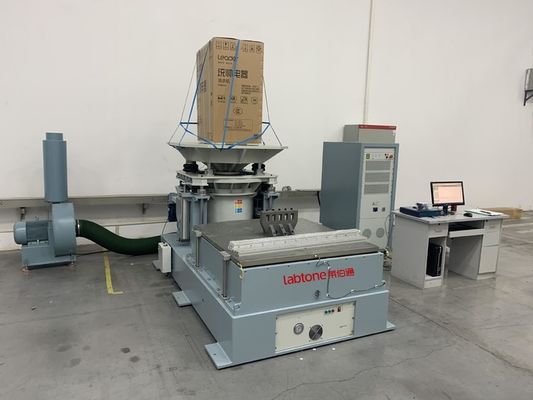

Vibration Table Testing Machine For Shock And Vibration Battery Testing Solutions

Vibration Table Testing Machine For Shock And Vibration Battery Testing Solutions
Vibration Table Testing Machine For Shock And Vibration Battery Testing Solutions Vibration Table Testing Machine For Shock And Vibration Battery Testing Solutions Vibration Table Testing Machine For Shock And Vibration Battery Testing Solutions

Büyük resim :  Vibration Table Testing Machine For Shock And Vibration Battery Testing Solutions

Ürün ayrıntıları:
Menşe yeri: DONGGUANG, ÇİN
Marka adı: LABTONE
Sertifika: CE / ISO
Model numarası: EV207
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 set
Fiyat: pazarlık edilebilir
Ambalaj bilgileri: Vakum Paketlemeli Kontrplak Kasa
Teslim süresi: 45 iş günü
Ödeme koşulları: T/T, L/C
Yetenek temini: 15 Takım / Ay
İletişim

Vibration Table Testing Machine For Shock And Vibration Battery Testing Solutions

Açıklama
Maksimum Çıkış Gücü: 700 kg .f (7kN) Rastgele güç: 700 kgf(7kN)
Maks. Yerinden etme: 1400 kgf (14kN) Armatür Kütlesi: 7 kilo
Armatür çapı: ￠230 mm Güç kaynağı: AC 3 fazlı 380V / 50Hz
Vurgulamak:

vibration table testing machine for batteries

,

shock and vibration testing equipment

,

battery vibration testing solutions



Vibration Shaker Table Systems for Shock and Vibration Battery Testing Solutions





Shock and Vibration testing standards : MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.


Shock and Vibration Testing  Machine Applicable Industries: Automotive, Electronics, Aviation, Vessel, Telecommunication, Military Industry, Measuring Instrument etc.



Shock and Vibration Testing  Machine Working Principle



Vibration Table Testing Machine For Shock And Vibration Battery Testing Solutions 0





Shock and Vibration Testing  Machine Specifications



Shaker Specifications
Peak Sine (Pk) 700Kg.f peak (7.0KN)
Random (RMS) 700Kg.f r.ms (7.0KN) @ISO5344
Shock (Pk) 1400Kg.f peak (14KN) @6ms
Usable Frequency 1～4000Hz
Maximum Displacement (p-p) 51mm (2nch)
Max. velocity 2m/s
Max. acceleration Sine:100g (980 m/s2)；Random: 60g (588 m/s2)
Vertical Load Support 300 Kg

Body Suspension Natural

Frequency (Thrust Axis)

 < 2.5 Hz
Armature Diameter Ф230 mm
Armature Weight 7.0Kg

Fundamental Resonance

Frequency (Bare table)

 3,500 Hz (nom.)±5%

Load Attachment

Points (Standard)

 16x M8 Inserts
Stray Flux Density ＜10gauss
Shaker dimensions 300.N.M
Weight of Shaker 935mmL×720mmD×760mmH
Power Amplifier Specifications LA7K
Rated Output Capacity 7kVA(110V/70A)
Signal to Noise Ratio > 65 dB
Amplifier Efficiency ≥ 90%
Amplifier Overall Dimensions 619mm×900mm×1520mm
Weight of Amplifier About 260Kg
Interlock Protection ●Input Over/Under Voltage ●Logic Fault ●Output Over Voltage/Current ●Control Power ●External ●Shaker Oil Pressure ●Module O/T ●Shaker Temp ●Shaker Travel
Shaker controller Specifications VCS5X-2
Hardware

2 Analog Input Channels, 1 Drive Channel

102.4 kHz Sampling Rate, 40kHz Frequency Range,

>120dB Dynamic range ,24-bit ADC/DAC,Centralized 32-bit floating DSP processing and low-noise design ,> 90 dB Random control dynamic range , Windows O/S GUI and Ethernet connectivity, graphic interface.-20~60℃ Working Temperature Fanless Structure to Reduce the Background Noise.
Control Functions

●Base Random,●Swept Sine,●Classic Shock,

●Resonance Search and Tracked Dwell(optional)
PC Configuration: ● PC(i3-3.6GHz CPU 8GB 1TB 1000Mbps Ethernet port.and 4 USB port / Microsoft Windows 10 OS)
Control Accelerometers

●Mode: LTE-B03A00

High sensitivity Charge acceleromteter ,C M5 coaxial plug to BNC plug low noise cable ,1—8kHz ,20mV/g ,M5 side Conn,Ground isolation,-40℃ to 160℃
Head Expander Specifications VT50CM
Material Magnesium alloy
Dimension 600mmX600mm
Effective Mass in kg 25KG
Usable Frequency 2000Hz
Blower Specification B402S
Blower Power 4 kW (5 HP)
Air Flow/Pressure: 0.33 m3/s @0.0035 Mpa
Blower dimensions 600mmL×560mmD×1470mmH
Weight of Blower 160kg
System Environmental Requirement
Power Requirement 380VAC, 50 Hz, 3Ph, 17.5 kVA
Operating Room Temperature 0 to 40 degree C
System Continuous Duty not less than 8 hours at the full ratings
Humidity 0 to 85%, non condensing
Compressed Air Requirement 0.7 Mpa



Shock and Vibration Battery Testing Solutions



Batteries power many of the things that enable and fulfill our everyday lives. As our lives have become less tethered – devices have surely become more efficient – but also – batteries now provide higher energy densities.

Think for a moment about shipping all these batteries…In very real terms – a shipment can represent a huge energy density – and in a mishap – that energy could be released in a very undesirable way.

Most batteries undergo transportation simulation tests to comply with international shipping standards. This is especially true for lithium ion batteries. To ensure safety during shipment, lithium batteries must be tested per UN/DOT specifications. The UN Manual of Tests and Criteria section 38.3 (UN/DOT 38.3) outlines the tests for lithium batteries. Labtone has the Test Equipment and expertise to perform (UN/DOT 38.3) tests–T3 (Vibration), T4 (Shock), and T6 (Impact).

Transport hazards are not the only dynamic conditions that battery designs must survive. When a portable electronic device sheds it packaging upon receipt, you may find the everyday use environment to be more rigorous than the shipping environment. In an automotive electric / hybrid application, batteries will be exposed to endless vibration as a matter of course. A variety of industry specifications exist for testing batteries to ensure that they can stand up to this type of use:

  • IEC 62133 (Vibration, Drop, Shock)
  • SAE J2464 (Shock, Drop, Data Acquisition)
  • UL 2054 (Shock, Vibration)
  • UL 2202 (Vibration, Drop)
  • UL 2231 (Drop, Shock, Vibration)



shock and vibration testing services :



Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.







Detalied Pictures:

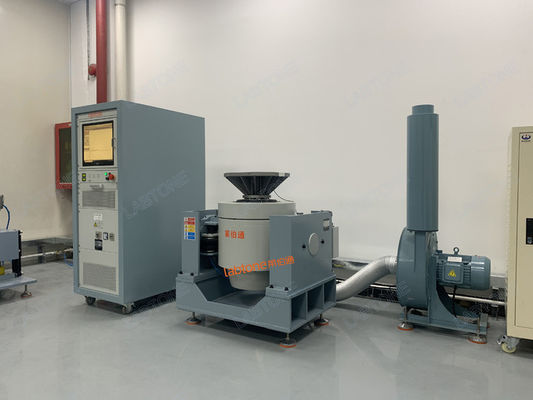

Vibration Table Testing Machine For Shock And Vibration Battery Testing Solutions 1

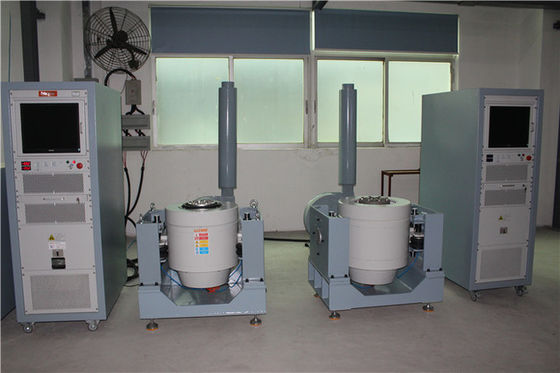

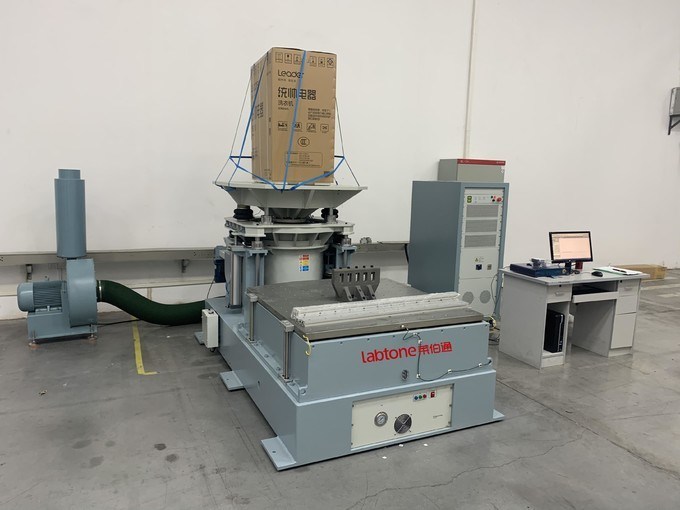

Vibration Table Testing Machine For Shock And Vibration Battery Testing Solutions 2Vibration Table Testing Machine For Shock And Vibration Battery Testing Solutions 3
