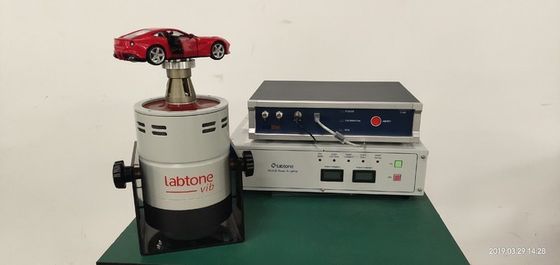

Minitype Vibration Shaker apply to the calibration of high precision vibration meter,mechanical impedance test, and vibaration analysis of the vibration source

Minitype Vibration Shaker apply to the calibration of high precision vibration meter,mechanical impedance test, and vibaration analysis of the vibration source
Minitype Vibration Shaker apply to the calibration of high precision vibration meter,mechanical impedance test, and vibaration analysis of the vibration source Minitype Vibration Shaker apply to the calibration of high precision vibration meter,mechanical impedance test, and vibaration analysis of the vibration source Minitype Vibration Shaker apply to the calibration of high precision vibration meter,mechanical impedance test, and vibaration analysis of the vibration source

Büyük resim :  Minitype Vibration Shaker apply to the calibration of high precision vibration meter,mechanical impedance test, and vibaration analysis of the vibration source

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: LABTONE
Sertifika: CE, ISO
Model numarası: ET-30
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: pazarlık edilebilir
Ambalaj bilgileri: Vakum Paketlemeli Kontrplak Kasa
Teslim süresi: 30-60 gün
Ödeme koşulları: T/T
Yetenek temini: 50 Takım / Ay

Minitype Vibration Shaker apply to the calibration of high precision vibration meter,mechanical impedance test, and vibaration analysis of the vibration source

Açıklama
Model Sistemi:: ET-30 Max. Maks. Acceleration: Hızlanma:: 30g
Maks. Hız:: 1,6 m/s Rastgele Kuvvet:: 550 N (55kg.f)
Yer değiştirme:: 20 mm Soğutma yöntemi:: Hava soğutmalı
Vurgu:: Titreşim Test Hizmetleri, Titreşim Shaker Sistemi, Titreşim Test Ekipmanı
Vurgulamak:

electrodynamic vibration shaker for calibration

,

minitype vibration shaker for impedance test

,

precision vibration meter calibration shaker

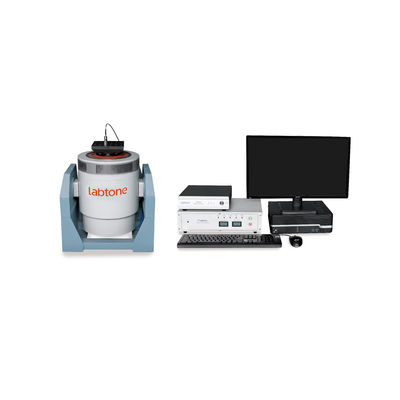

Minitype Vibration Test System



Description

With light weight, small volume, convenient to move,ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.



Product Application

Minitype Vibration Test System

With light weight, small volume, convenient to move, ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.

Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.

Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

Features



  • Apply to the calibration of high precision vibration meter, mechanical impedance test, vibration analysis of the vibration source.
  • Apply to the vibration test of various small and lightweight parts such as sensor, electronic, electric machines and etc.
  • Apply to the basic test of vibration engineering of educational equipment.

Equipment Configuration



Item Configuration Qty.
1. Vibration shaker
  ET30 Shaker 1 set
2. Digital switch power amplifier
  PA502E Power Amplifier 1 set
4. Attached accessories
  connecting line 1 set
  Operation instructions, inspection report, certificate, maintenance manual, etc. 1 set
  Special tools 1 set



Vibration Test Machine Specification:

Model ET-30
Shaker Unit V30

Peak force[N]

(fan is mounted at the bottom of the vibration shaker)

150

Peak force[N]

(The blower is placed outside)

300
Frequency[Hz] 5~6500
Resonance frequency[Hz] 4800±5%
Maximum displacement [mm p-p] 12
Equivalent mass [kg] 0.45
Peak acceleration [g] 65
Weight[kg] 19
Payload[kg] 2
Install screw holes[ø mm] 4*M5
Armature size[ø mm] 50
Dimension[mm*mm*mm] 200*265*250



Power Amplifier PA502E
Rated power 550VA
Frequency[Hz] DC~20k
Maximum voltage [V] 55
Maximum current [A] 10
Signal input voltage < 1.5 VRMS
Noise-signal ratio > 90 dB
Total harmonic distortion < 1%
Weight[kg] 15Kg
Dimension[mm] 430*300*100
Maximum power consumption 820 VA
Power supply AC 220V
Efficiency >94%
defencive function Over pressure, overcurrent, overtemperature, short circuit, over displacement



Vibration Test Machine Services



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

.



After-Sales Service

  • Training how to instal the machine, training how to use the machine.
  • Engineers available to service machinery overseas.



Detailed Pictures



Minitype Vibration Shaker apply to the calibration of high precision vibration meter,mechanical impedance test, and vibaration analysis of the vibration source 0Minitype Vibration Shaker apply to the calibration of high precision vibration meter,mechanical impedance test, and vibaration analysis of the vibration source 1Minitype Vibration Shaker apply to the calibration of high precision vibration meter,mechanical impedance test, and vibaration analysis of the vibration source 2Minitype Vibration Shaker apply to the calibration of high precision vibration meter,mechanical impedance test, and vibaration analysis of the vibration source 3
