Shock Test System Performs Mechanical Shock Test 175g 3ms Of IEC62133 Battery Test

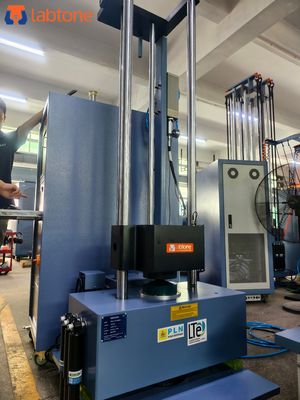

Büyük resim : Shock Test System Performs Mechanical Shock Test 175g 3ms Of IEC62133 Battery Test

Ürün ayrıntıları:

Menşe yeri:	ÇİN
Marka adı:	LABTONE
Sertifika:	CE, ISO
Model numarası:	HSKT30

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	pazarlık edilebilir
Ambalaj bilgileri:	Vakum Paketlemeli Kontrplak Kasa
Teslim süresi:	30-35 iş günü
Yetenek temini:	Ayda 15 Set

İletişim

Shock Test System Performs Mechanical Shock Test 175g 3ms Of IEC62133 Battery Test

Açıklama

Max Sine Force::	1100kg.F	Şok nabzı::	yarım sinüs
Hızlanma Aralığı (M/S2)::	20----600	Darbe Süre Aralığı (MS)::	0,2~11
Masa boyutu::	40x40cm	Güç::	Hidrolik
Vurgu::	Mekanik şok testi, şok testi ekipmanı
Vurgulamak:	Shock test system for IEC62133 , Mechanical shock test system 175g , Battery shock test system 3ms

Shock Test System Performs Mechanical Shock Test 175g 3ms of IEC62133 Battery Test

Product description

The SKT30 is applicable for Mobile phones, computers, optical components, connectors, batteries, etc.

The equipment conforms to such testing specifications as IEC62133,MIL-STD-202F,MIL STD 810, ASTM D3331, IEC60068-2-27,75 EIA TP-27B, ANSI-VITA 47-2006, GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, CUSTOM SPECS etc.

Specification

Main parameters of the shock tester
Table Size	400 × 400 mm
Max. Specimen Weight	30KG
Peak acceleration	Half sine wave: 20 to 600G
Pulse duration	Half sine wave: 1 to 30 ms
Pulse Waveform *With Optional Programmers	Half Sine Trapezoidal * Terminal Peak Sawtooth*
Equipment dimensions	79×80× 210cm
Equipment weight	1050 kg
Data analysis & acquisition systems
Input channels	2 channels
Sampling frequency	192KHz
Pulse duration	As narrow as 0.1ms
Max. acceleration	100,000G
Communication interface	USB2.0
Supportive standard	ISO, UN38.3,MIL-STD-810, user defined
Operating system	Microsoft Windows 7/10
Accelerometer
Model	C02A01
Output mode	Charge type
Sensitivity	10 pC/g
Frequency range	0.5 to 8KHz
Acceleration range	±2000G

Standard Shock Test systems

Model		SKT30	SKT50	SKT100	SKT200	SKT300	SKT600	SKT1000
Table Size (cm)		40 x 40	50 x 60	70 x 80	100 x 100	120 x 120	150 x 150	200 x 200
Max. Specimen Weight(kg)		30	50	100	200	300	600	1000
Max. Acceleration (G)	Half Sine	600	600	600	500	500	300	300
	Saw-tooth	100	100	100	100	100	100	100
	Square		150	150	150	100	100	100
Pulse duration (ms)	Half Sine	30—0.5	30～1	30～1	30～2	20～3	20～3	20～3
	Saw-tooth	18～6	18～6	18～6	18～6	18～6	16～6	18～6
	Square		30～6	30～6	30～6	30～6	30～6	30～6
Controller cabinet dimension(cm)		W55D50H80
Machine weight(Kg)		1900	2300	3200	4200	8500	15500	21500
Power supply		3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa
Standards		GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL

Purpose of Shock Testing

The purpose of shock testing is to determine the fragility of products.
Ruggedness is a desirable product characteristic.
A certain amount of ruggedness is necessary for the product's proper functioning.
Manual handling during distribution normally will "exceed" product ruggedness so protective packaging is usually required
Shock testing can be useful to improve the ruggedness of designs and add value to the product
Traditional shock fragility testing used SRS techniques because we lacked knowledge of what inputs were likely.
SRS was well established in architecture and the building industry.

Company profile:

Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipment. Our superior products mainly include Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.

Labtone started a business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument, and industrial machinery applications. Our experience and commitment to new product development have resulted in products that are easy to use, accurate and designed for decades of service.

Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literature, manuals, and guides as well as having qualified staff and experts to solve your problems.

We sincerely invite you to visit our factory.

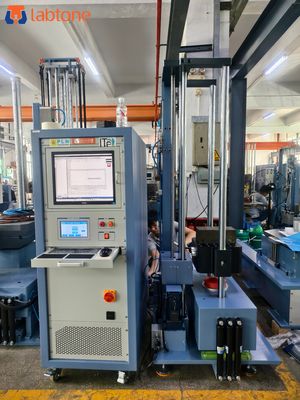

Shock Test System Performs Mechanical Shock Test 175g 3ms Of IEC62133 Battery Test 1

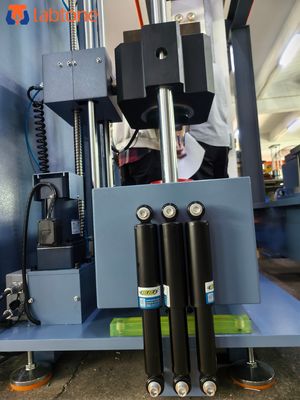

Shock Test System Performs Mechanical Shock Test 175g 3ms Of IEC62133 Battery Test 2
